Product Overview
Pumpmaster 45 - 3:1 ratio oil pump (stub pump). Heavy-duty volume transfer pump.
PM45 series air operated piston pumps. Double acting air operated medium pressure and high delivery pump for large volume transfer applications. Built in port for optional pressure relief valve. Flange mounted pump. Maximum air consumption with 5 bar (72 psi) air inlet pressure and 80 cpm. Maximum noise level measured at 1 m (3.3') from the pump, 7 bar (102 psi) air pressure and free delivery.
Fluids handled:
- Synthetic and mineral based lubricants
- Hydraulic oil
- Gear oil
- Transmission fluid
Markets served:
- Construction equipment maintenance
- Mining equipment
- Large fleets
- Railroad and mass transit maintenance
- Marine
- In-plant oil distrubtion and transfer
 |
536330 - Product Specification |
 |

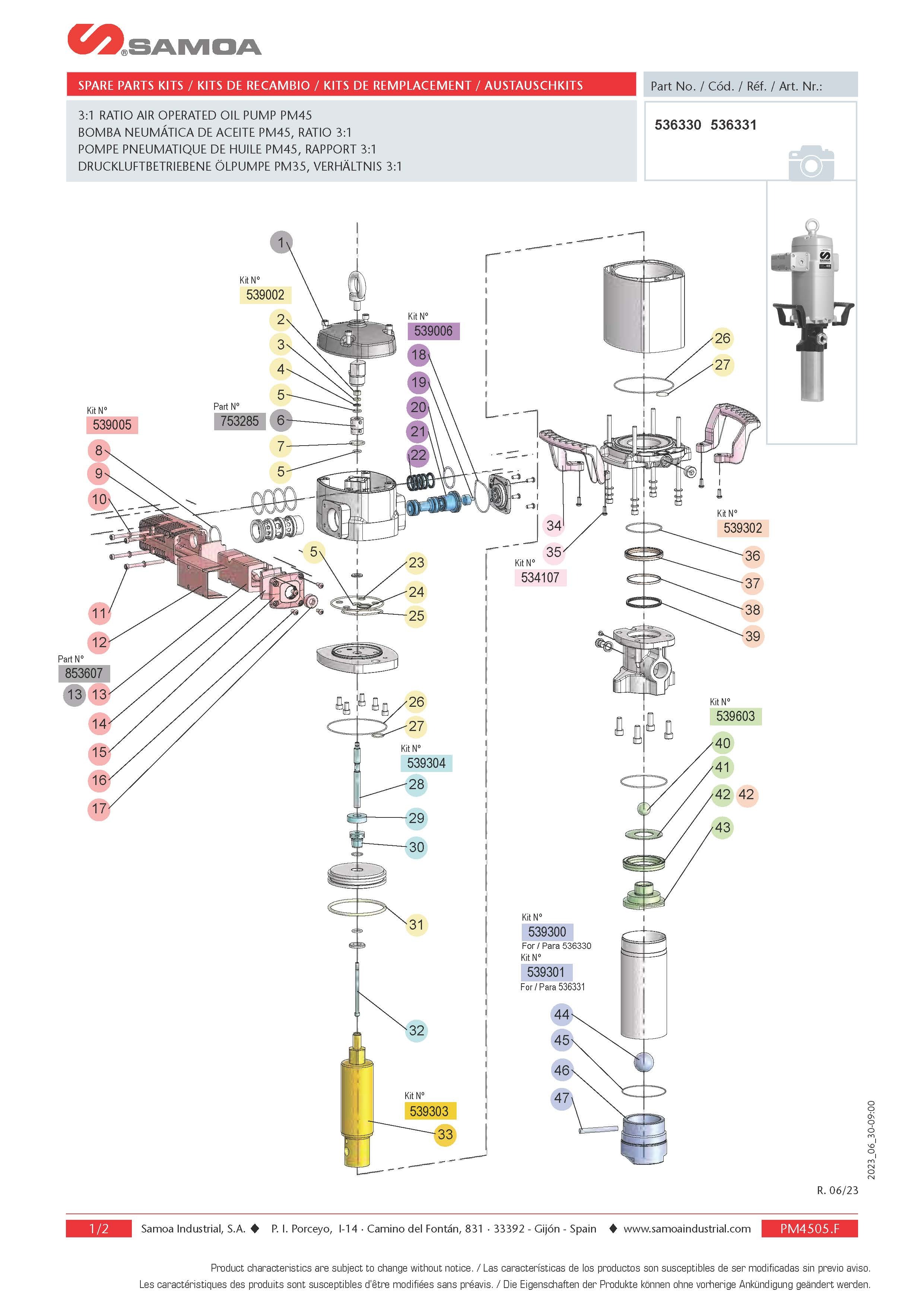

536330 - Spare Parts Listing |
 |

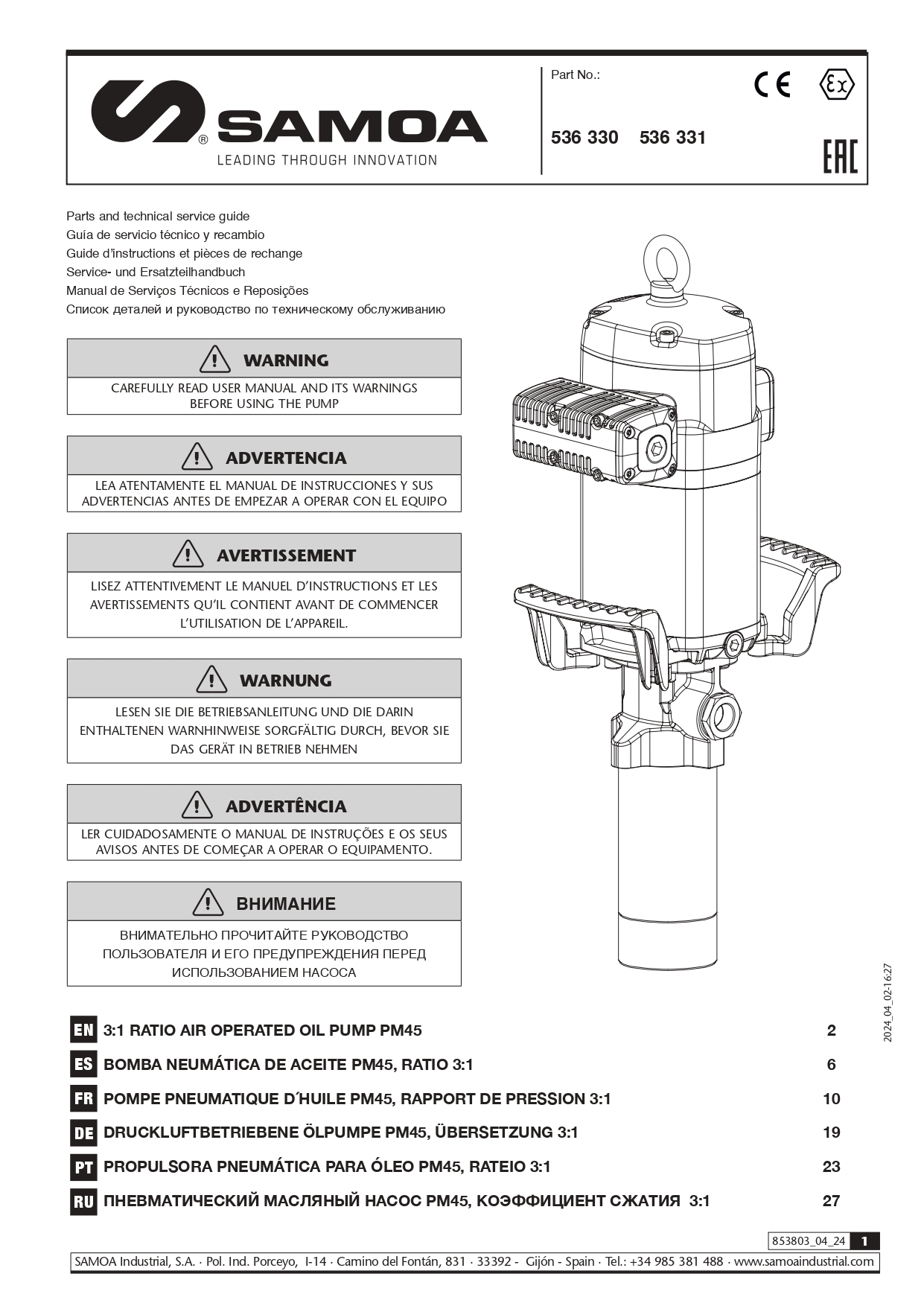

536330 - Product Manual |
