Product Overview
Pumpmaster 45 - 70:1 ratio grease pump for various applications.
PM45 series air operated piston pumps. High pressure double acting pump for use in applications that require extra pressure output or when cold temperatures a low air pressure could limit pump performance. Pumps can be used with grease up to NLGI-2 viscosity. These pumps can be used in large distribution systems that include simultaneous operation outlets. Pumps are available for cover mount to 50 kg - 120 lb and 185 kg - 400 lb open drum and for horizontal and side mount on grease totes and bags. Air consumption at 5 bar (70 psi) air pressure, NLGI-2 grease at 20 °C (68 °F) and 80 cpm. Noise level measured at 1 m (3.3’) from the pump, 7 bar (100 psi) air pressure and free delivery.
Fluids handled:
- Grease up to NLGI-2
Markets served:
- Heavy-duty service shops
- Fleets
- Lube trucks
- Mining and construction
- Railroad and mass transit
- In-plant
- Marine
Please note: Bulk tote pump includes adapter to fit a 3" cam-lock connector for use in totes and grease bags.
 |
531710, 531720, 531730 - Product Specification |
 |

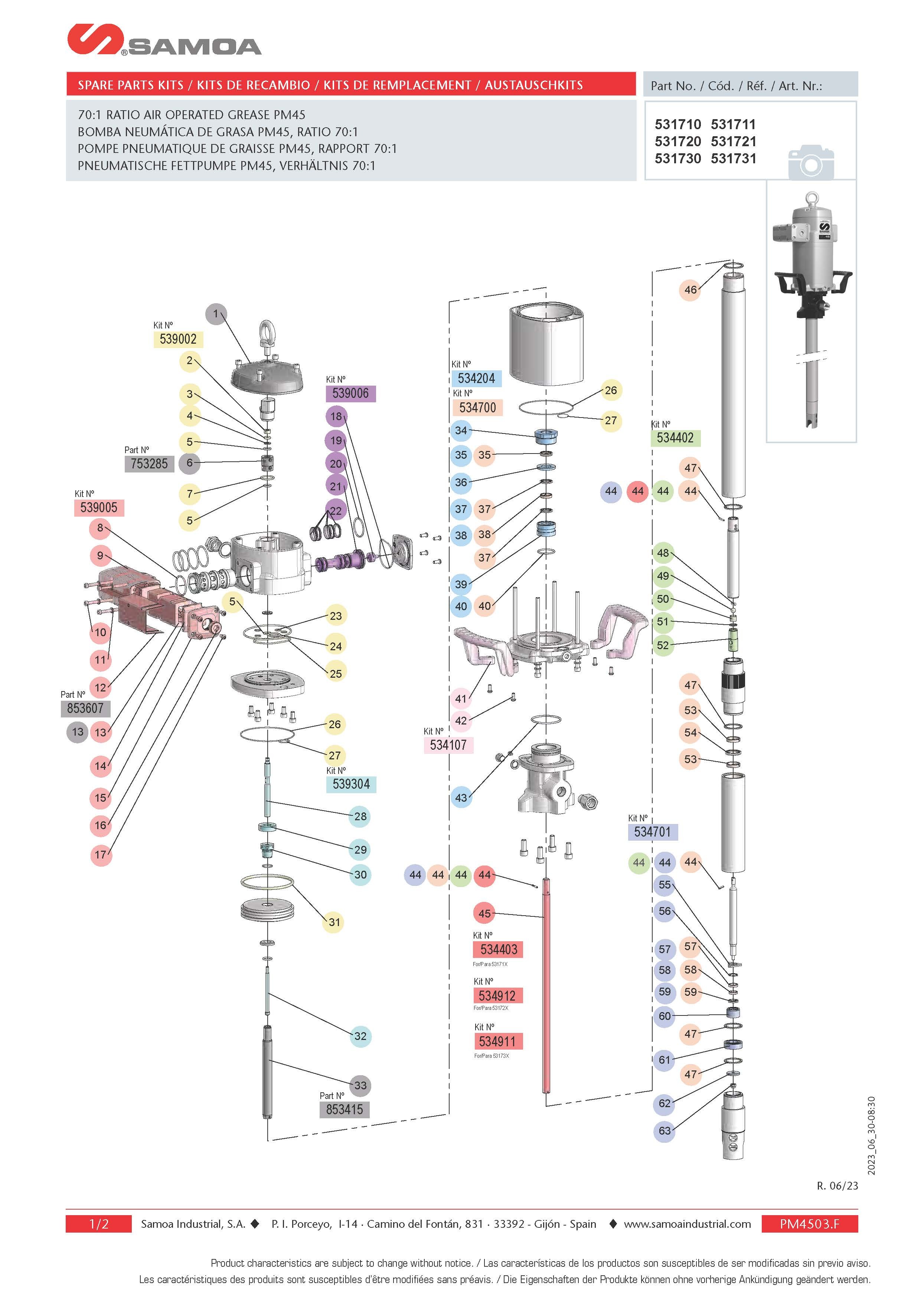

531710, 531720, 531730 - Spare Parts Listing |
 |

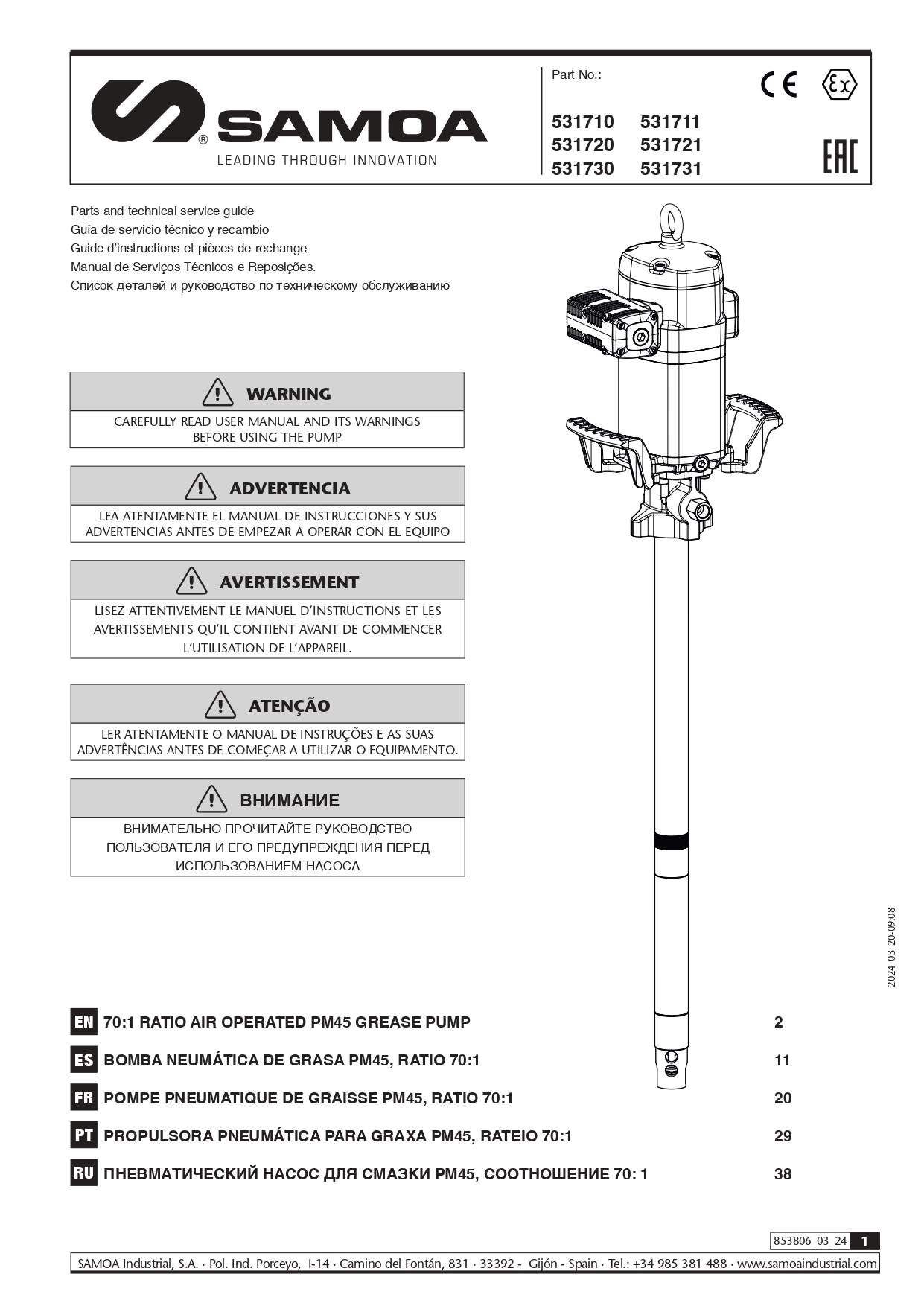

531710, 531720, 531730 - Product Manual |
