Product Overview
The UP05A-BAC-AHC is a 1/2" air operated double diaphragm metallic pump designed with higher efficiency for maximum fluid flow with reduced air consumption. Highly suitable for indoor and outdoor use. Simple servicing, maintenance and cleaning as the pump is held together with carriage bolts and nuts, allowing a much faster strip down and rebuild.
Suitable for:
- Lubricants/Oils
- Coolant/Antifreeze
- Diesel
- Waste Oil
- Waste Coolant
Approximate Delivery: 54 litres/min
| Pump size: | 1/2" |
| Pressure ratio: | 1:1 |
| Target product type: | Pivot Series Diaphragm Pumps |
| Maximum free flow delivery: | 54 l/min (14,3 gal/min) |
| Air pressure operating range: | 1,5-8 bar (20-120 psi) |
| Solids in suspension maximum size: | 2,5 mm (0,09 ") |
| Maximum dry suction head: | 5 m (16 ft) |
| Maximum wet suction head: | 8 m (26 ft) |
| Delivery per cycle: | 0,15 l (0,04 gal) |
| Fluid inlet: | 1/2" BSP (F) |
| Fluid outlet: | 1/2" BSP (F) |
| Air inlet: | 1/4" NPSM (F) |
| Air exhaust port: | 1/2" NPT (F) |
| Sound level: | 75 dB |
| Certification: | ATEX |
| Central body & Air chambers material: | Aluminium |
| Fluid ports / Location: | 1/2" BSP central and lateral threaded |
| Fluid chambers & Manifolds material: | Aluminium |
| Hardware Bolts & Inserts material: | Carbon steel |
| Diaphragms type & material: | Hytrel |
| Valve seats material: | Aluminium |
| Valve balls material: | Hytrel |
| Wetted materials: | Aluminium, Hytrel |
| Accessories for UE Pumps: | No |
| Weight: | 3,9 kg (8,6 lb) |
 |

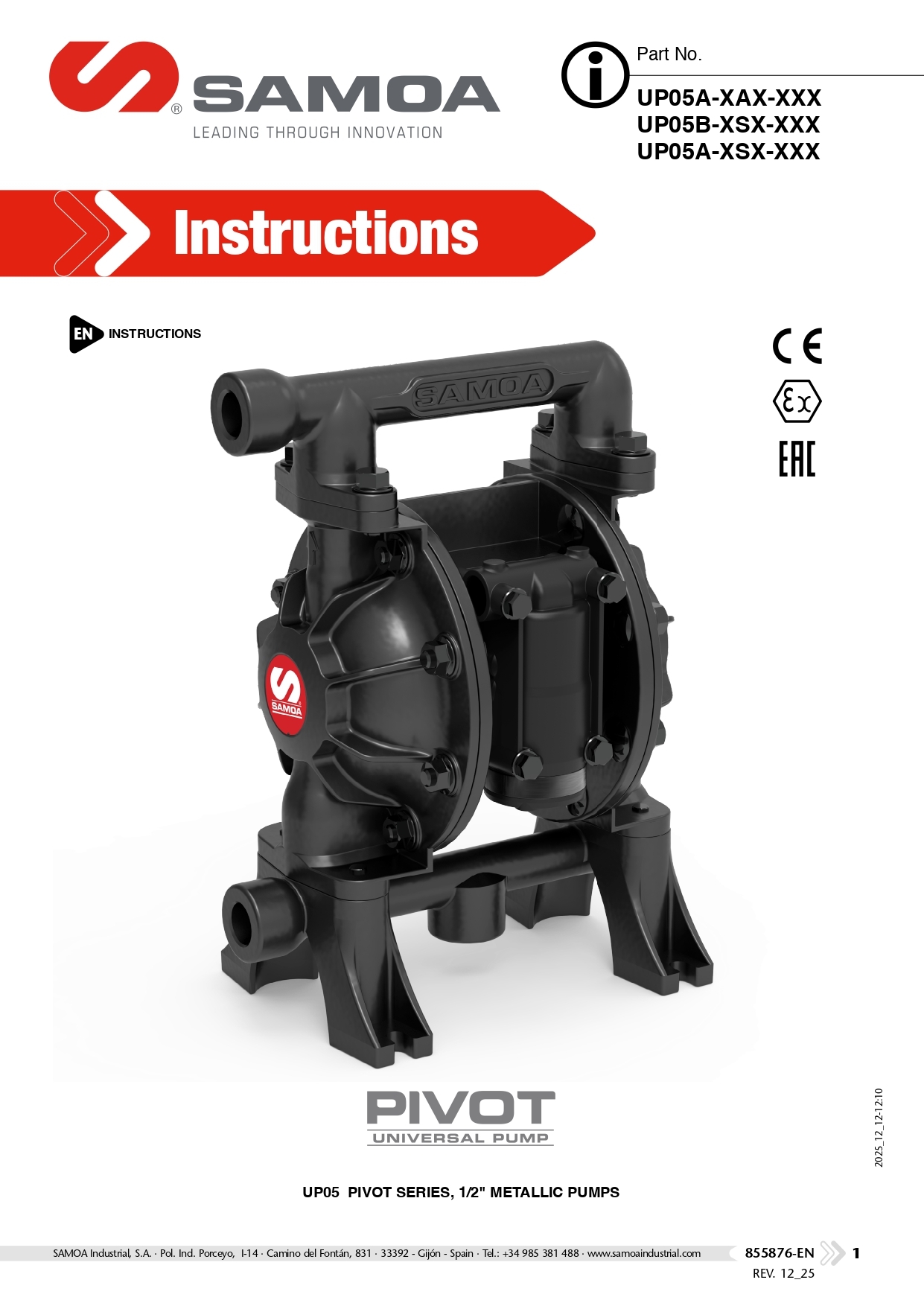

Instruction Manual for UP05A/UP05B Pumps |
 |

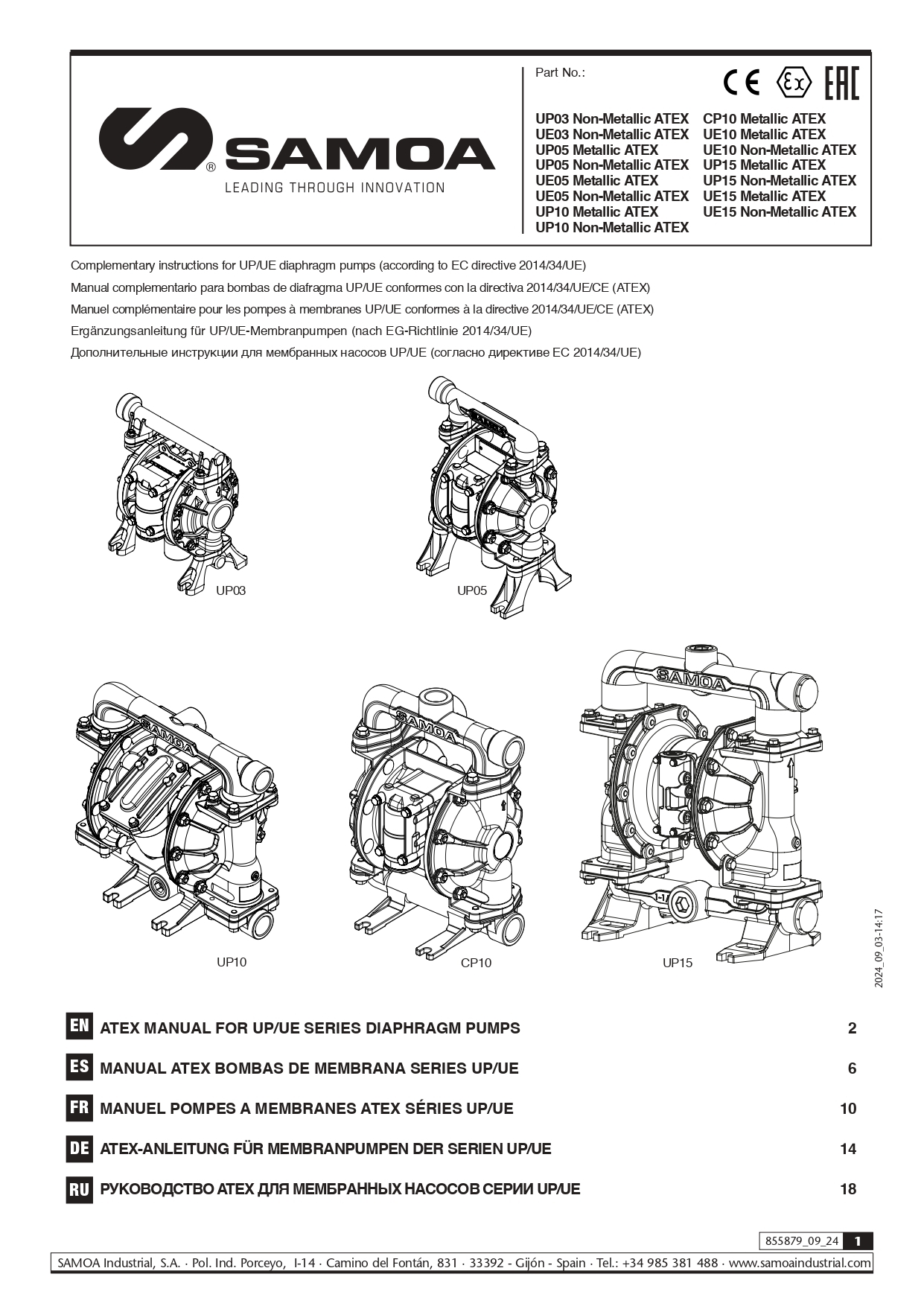

ATEX Manual for UP/UE AODD Pumps |
 |

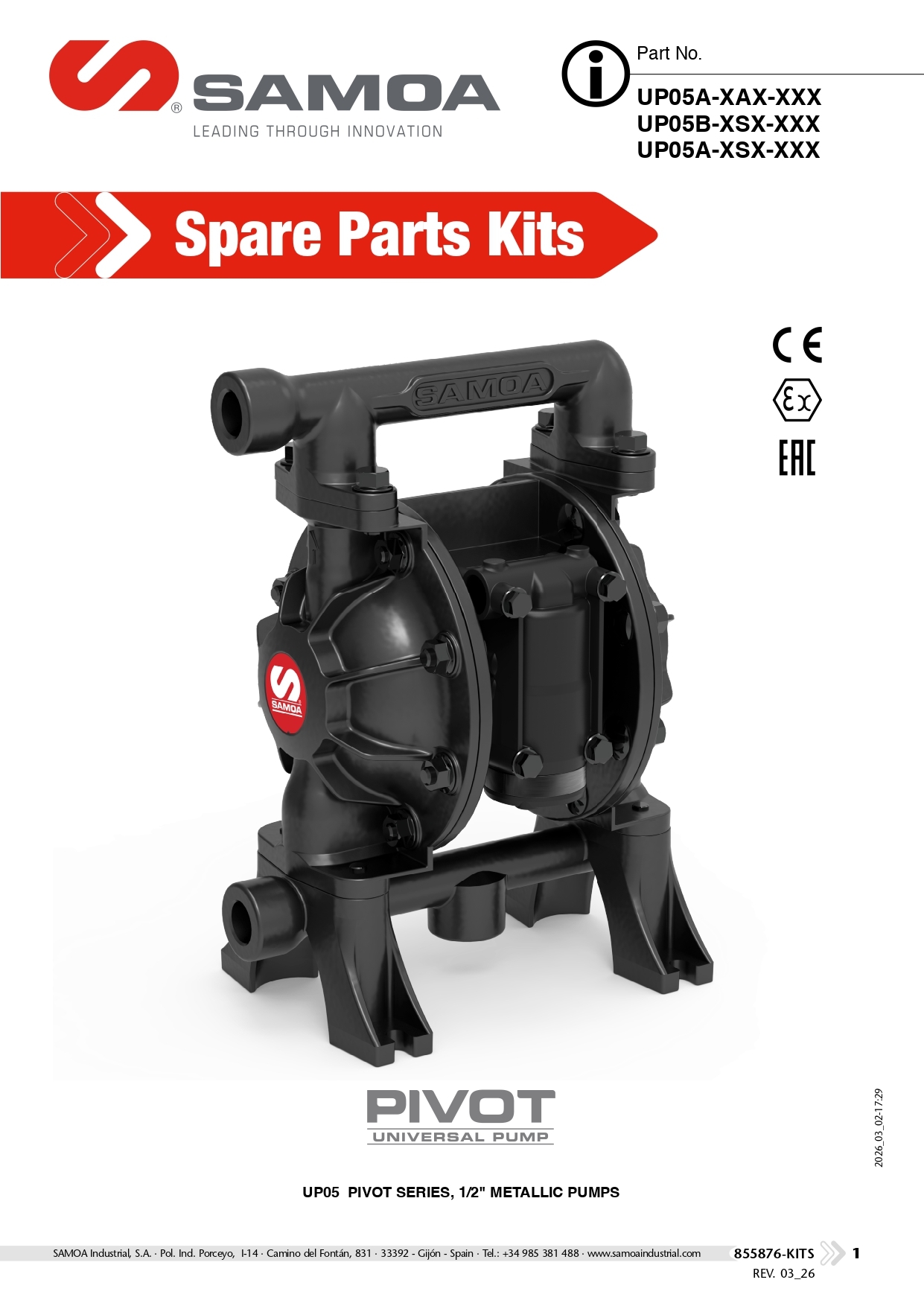

Spare Parts Listing for UP05A/UP05B Pumps |
