Product Overview

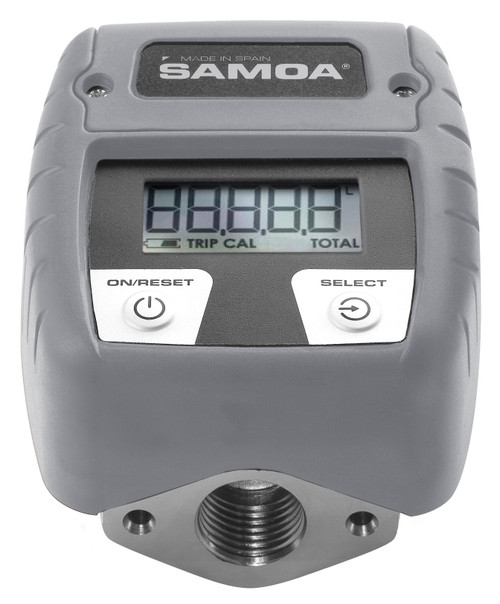

Oval gear meter for use as in-line meters. Manufactured in AISI 316 stainless steel, acetal and Viton® for medium pressure dispense of AdBlue®/DEF, windscreen wash and antifreeze solutions. They can be wall mounted in the fluid line or at the pump outlet.
Meter includes an electronic register controlled by wetted magnets and powered with with two AAA batteries. It is shock proof and isolated from the fluid handled. Meter display is multi-function, showing the volume dispensed per delivery, and has a permanent and a resettable (trip function) totaliser. The display can be programmed to show delivery in litres, quarts, pints and US gallons. The assembly is enclosed in TPE moulded shoud.
Wetted parts: AISI 316 stainless steel, acetal, Viton®
Applications: Medium pressure dispense of AdBlue®/DEF, windscreen wash and antifreeze solutions
Inlet/outlet thread: 1/2" BSP (F)
Flow rate: 1-50 l/min
Pulses per litre: 164 ppl
Accuracy: +/- 0.5%
Maximum operating pressure: 100 bar
Temperature range (fluid): -10°C to 70°C
Calibration: can be calibrated
Weight: 0.85kg
 |

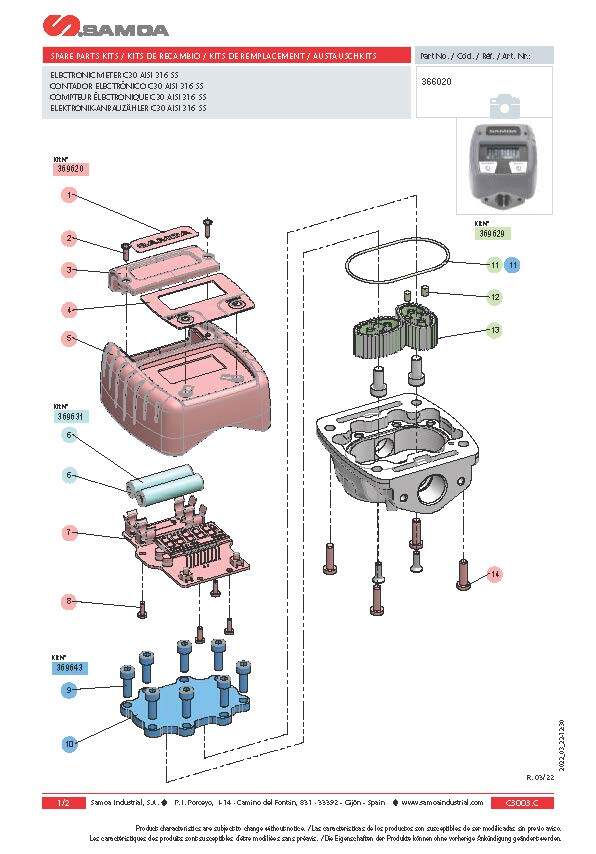

366020 - Spare Parts Listing |
 |

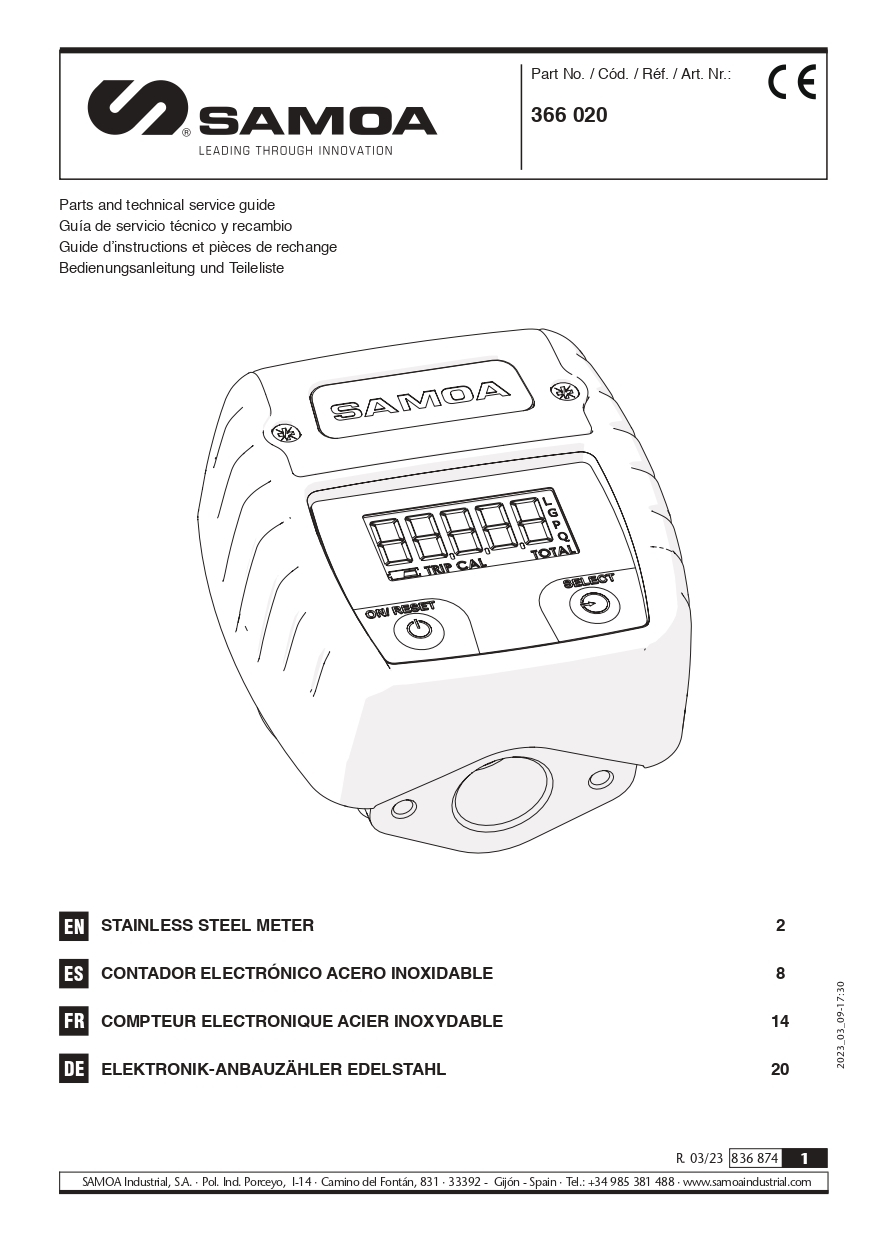

366020 - Product Manual |
