Product Overview
Pumpmaster 45 - 10:1 ratio oil pump. Heavy-duty high flow pumps.
PM45 series air operated piston pumps. Double acting air operated moderate pressure pump for very large oil systems or when a low air pressure or cold temperatures would limit pump performance. Built in port for optional pressure relief valve. Flange mounted pumps. Pump 536 010 can also use bung adaptor (PN 360 006) for bung mounting. Maximum air consumption with 5 bar (72 psi) air inlet pressure and 80 cpm. Maximum noise level measured at 1 m (3.3') from the pump, 7 bar (102 psi) air pressure and free delivery.
Fluids handled:
- Synthetic and mineral based lubricants
- Hydraulic oil
- Gear oil
- Transmission fluid
Markets served:
- Large auto and truck dealers
- Construction equipment maintenance
- Mining equipment maintenance
- Large fleets
- Lube trucks
- Railroad and mass transit maintenance
- Marine
- In-plant oil distrubtion and transfer
 |
536030, 536010 - Product Specification |
 |

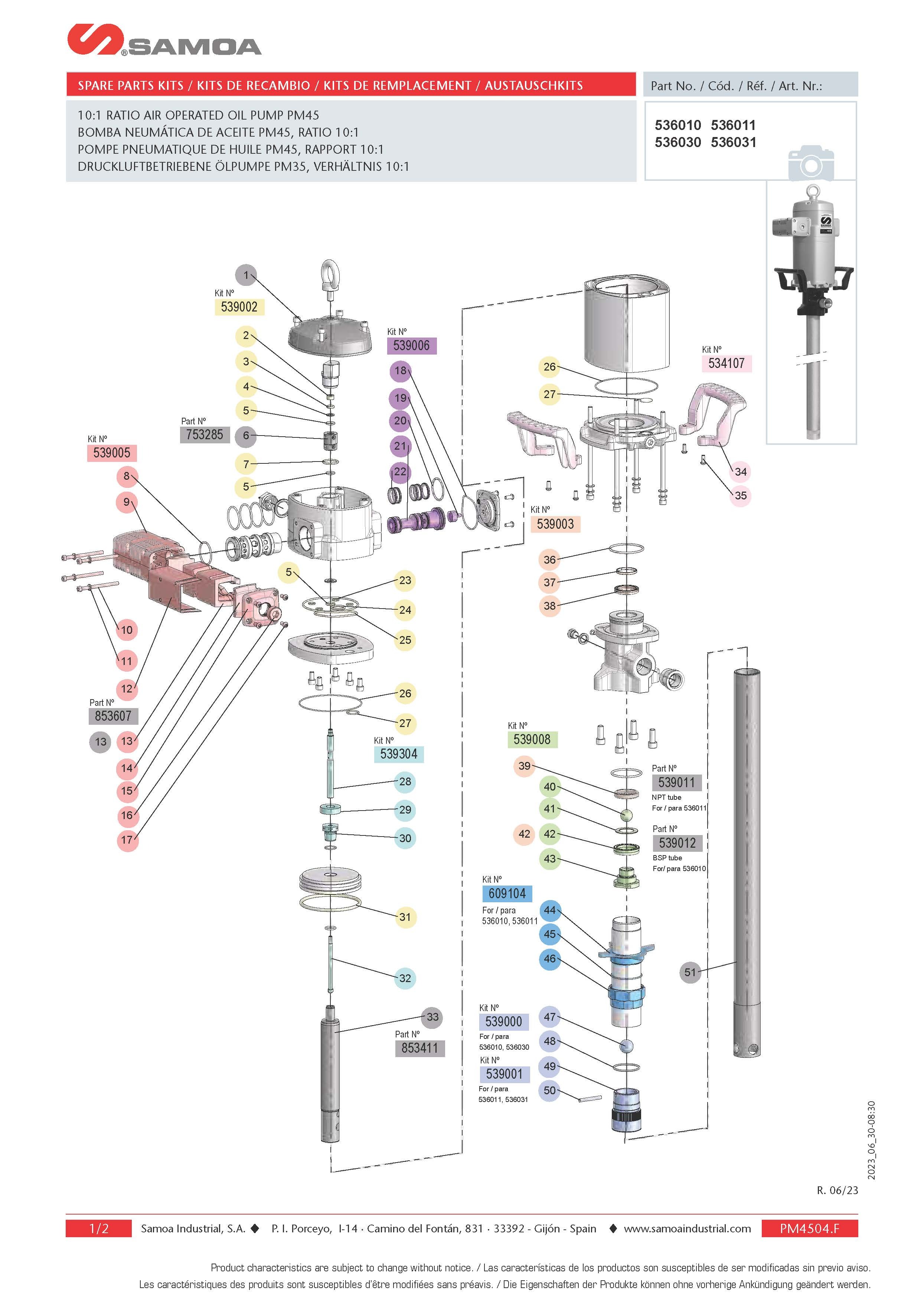

536030, 536010 - Spare Parts Listing |
 |
536030, 536010 - Product Manual |
